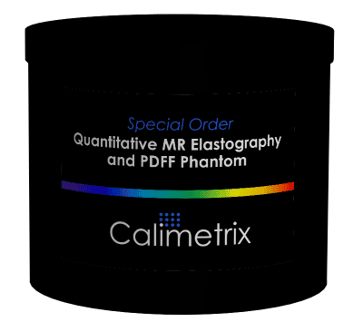

Special Order Quantitative MRE-PDFF Phantom

For simultaneous testing and quality assurance of both MRE stiffness and MRI PDFF measurements

MRE Phantom Features

  • Black polypropylene housing with a diameter of 6.13" and a height of 5.13".  The phantom holds approximately 77 oz. of gel.
  • Available in (2.5 / 0%), (4.0 , 0%), (2.5, 20%), (4.0, 20%) [kPa/%PDFF]. Custom values are available with stiffness between 2-4kPa and PDFF of 10, 20, 30, and 40%.

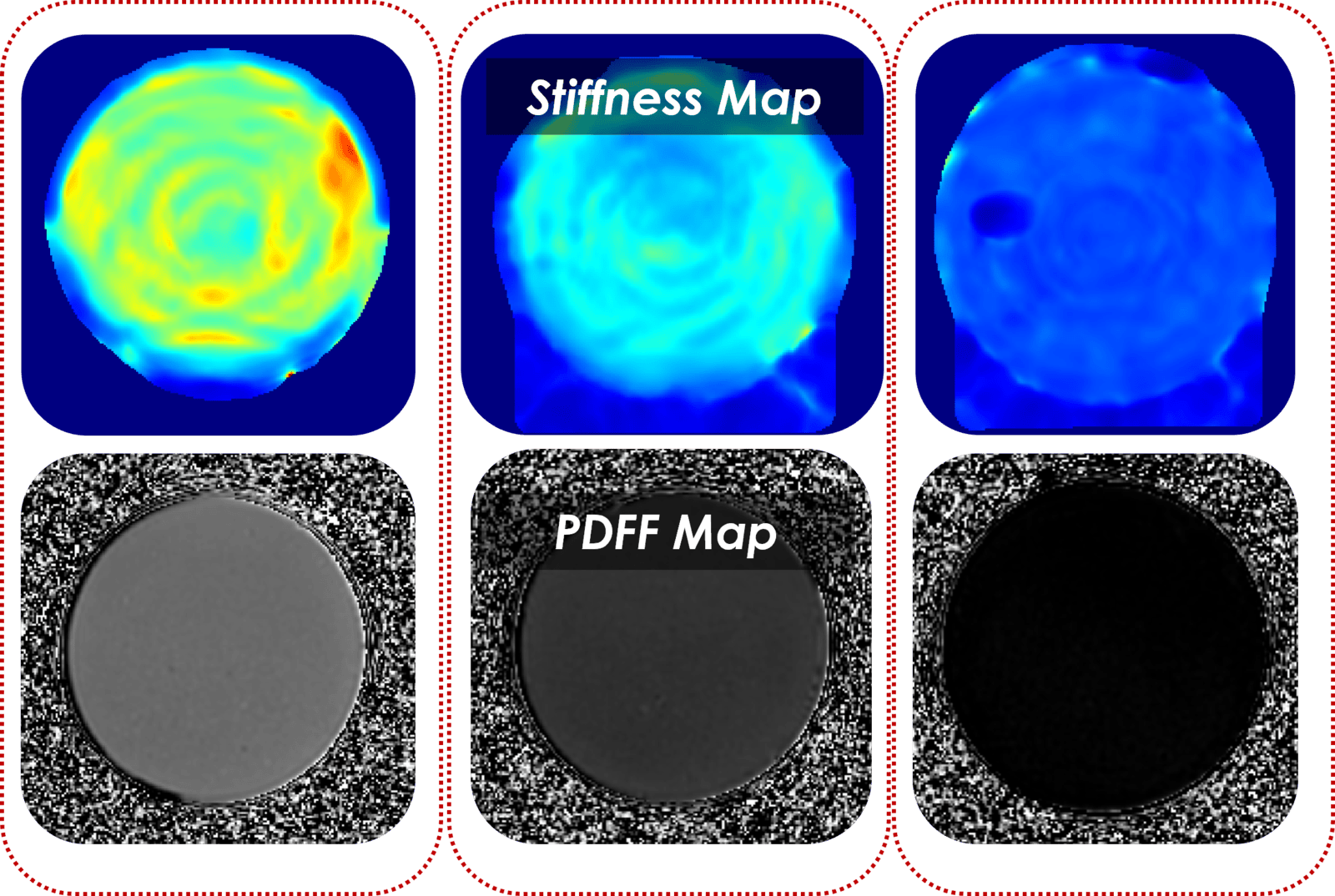

  • MRE Verification of mechanical stiffness and MRI verification of PDFF at 3T is included with purchase.
  • Order includes an MRI Conditional custom case that can be safely stored inside the MRI suite.
  • This phantom is currently available as a Special Order because it requires manufacturing processes that are different from those documented in the Calimetrix Quality Management System for standard products.
Learn more about MRE-only phantoms
Request A Quote!

Clinical Relevance of Stiffness Quantification

Over 100 million Americans suffer from metabolic dysfunction-associated steatotic liver disease (MASLD, formerly known as NAFLD). Commercially available quantitative magnetic resonance elastography (MRE) methods can non-invasively detect and measure important features of MASLD. Highly controlled and reliable test objects, or “phantoms”, are needed to perform quality assurance of these quantitative MRE methods.
