Combination and Custom Phantoms

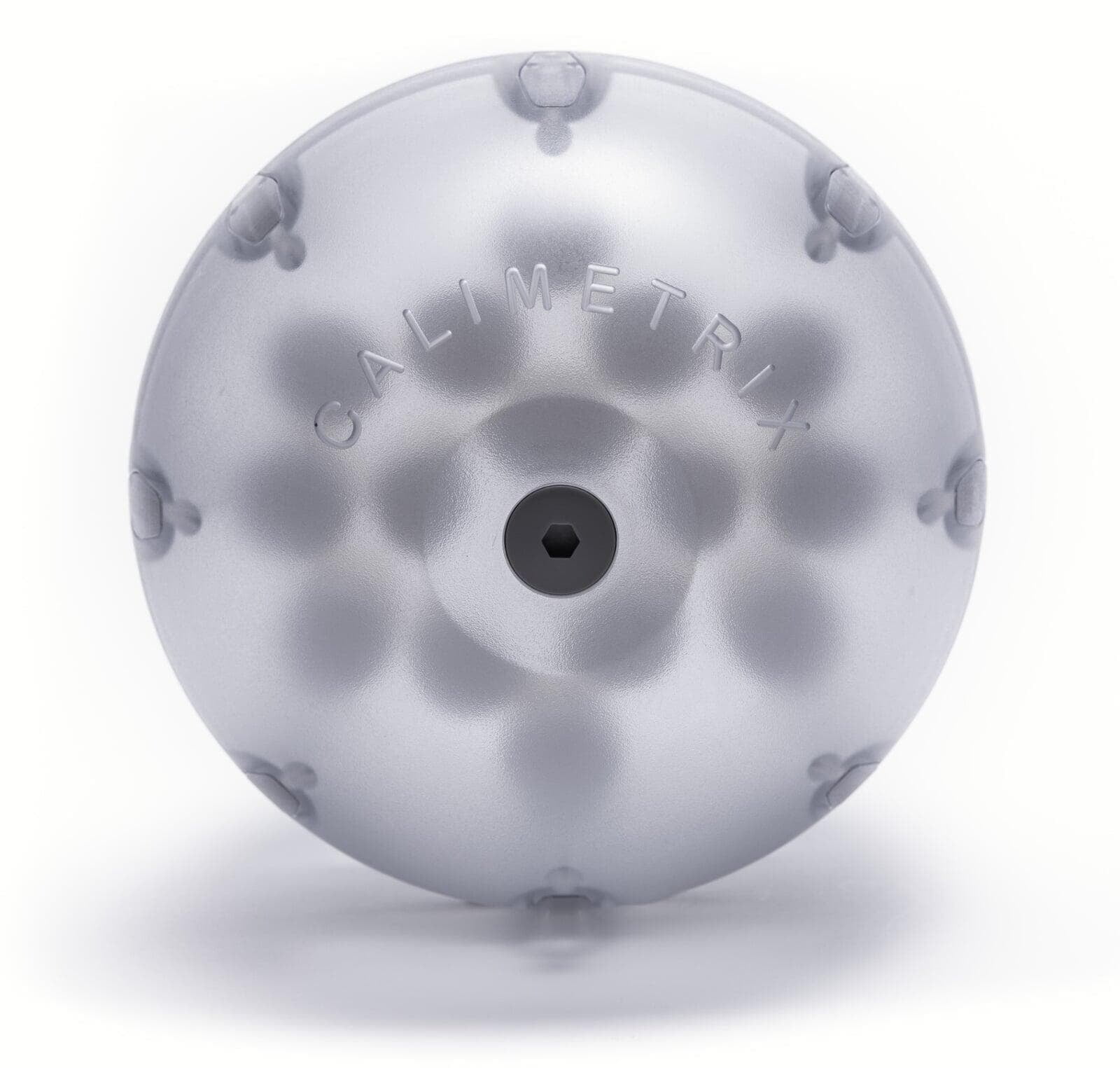

Model 450 Phantom

Select 15 total PDFF, R2*, T1, T2, and/or custom values from below to be placed into the same housing.

Combination Phantom Value Options

  • PDFF: 0, 2.5, 5.0, 7.5, 10, 15, 20, 25, 30, 40, 50, 100 % PDFF

  • R2*: 15, 25, 50, 75, 100, 150, 200, 300, 400, 600, 800, 1000 s-1 at 3T

  • T1: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200 ms at 3T

  • T2: 10, 20, 30, 40, 50, 60, 70, 80, 90,100 ms at 3T

Custom values within the following ranges are available:

  • PDFF from 0, 2.5 - 95%, 100%

  • R2* from 15 -1500 1/s at 3T

  • T1 from 100 - 1500 ms at 3T

  • T2 from 10ms to 100 ms at 3T (T2 above 100 ms available as special order)
