PDFF Phantoms

Calimetrix PDFF (Proton-Density Fat-Fraction) Phantoms are designed for testing and quality control of magnetic resonance (MR)-based fat quantification.

Housing-Based Phantoms: Optimal image quality for independent reference standard scans.
Phantom Pack: Reference standard for quality assurance embedded in every patient scan.

6 Vials: 0, 10, 20, 30, 40, 100% PDFF

12 Vials: 0, 2.5, 5.0, 7.5, 10, 15, 20, 25, 30, 40, 50, and 100% PDFF

18 Vials: 0, 2.5, 5, 7.5, 10, 15, 20, 30, 40, 50, 60, 70, 75, 80, 85, 90, 95,100% PDFF

5 Vials: 0, 10, 20, 30, 40% PDFF. Shown with optional accessory pad

Learn more about Housing-Based Phantoms

Learn more about Phantom Packs

Request A Quote!

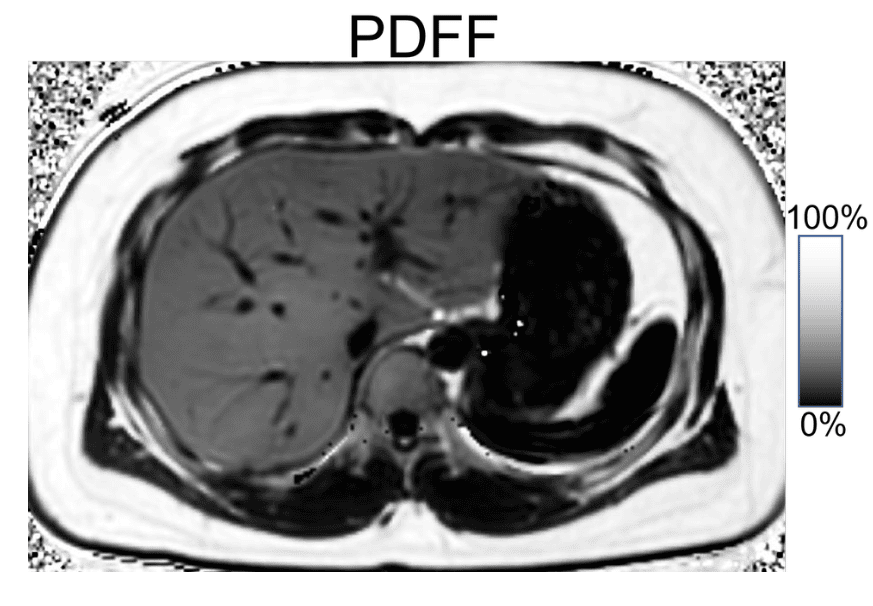

Clinical Relevance of PDFF Quantification

MRI-based triglyceride metrics can be useful for diagnosis, quantitative grading, and treatment monitoring of metabolic dysfunction–associated steatotic liver disease (MASLD), previously known as non-alcoholic fatty liver disease (NAFLD), and other diseases. However, such quantitative metrics must be both accurate and reproducible. Our Model 300, Model 600, and Phantom Pack products focus on the 0-50% PDFF range that is relevant for MASLD. Our Model 825 product includes PDFF values that sample the complete range from 0-100% PDFF. This is relevant for the following tissues:

Fatty Liver Disease: 0-50% PDFF
Fatty Infiltration of Muscle: 0-15% PDFF
White Adipose Tissue (e.g. Subcutaneous Fat): 75-100% PDFF
Brown Adipose Tissue: 20-85% PDFF
Red Bone Marrow: 20-70% PDFF

Relevant Publications

Hu, H.H., Chen, H.SM. & Hernando, D. Linearity and bias of proton density fat fraction across the full dynamic range of 0–100%: a multiplatform, multivendor phantom study using 1.5T and 3T MRI at two sites. Magn Reson Mater Phy (2024). https://doi.org/10.1007/s10334-024-01148-9
Stelter, J.K., Boehm, C., Ruschke, S., Weiss, K., Diefenbach, M.N., Wu, M., Borde, T., Schmidt, G.P., Makowski, M.R., Fallenberg, E.M., Karampinos, D.C., Hierarchical multi-resolution graph-cuts for water–fat–silicone separation in breast MRI. IEEE Transactions on Medical Imaging 11, 3253–3265. (2022)
Navaratna R, Zhao R, …, Brittain JH, Hernando D, Reeder SB. Temperature-corrected proton density fat fraction estimation using chemical shift-encoded MRI in phantoms. Magn Reson Med. 2021 Feb 9. doi: 10.1002/mrm.28669.

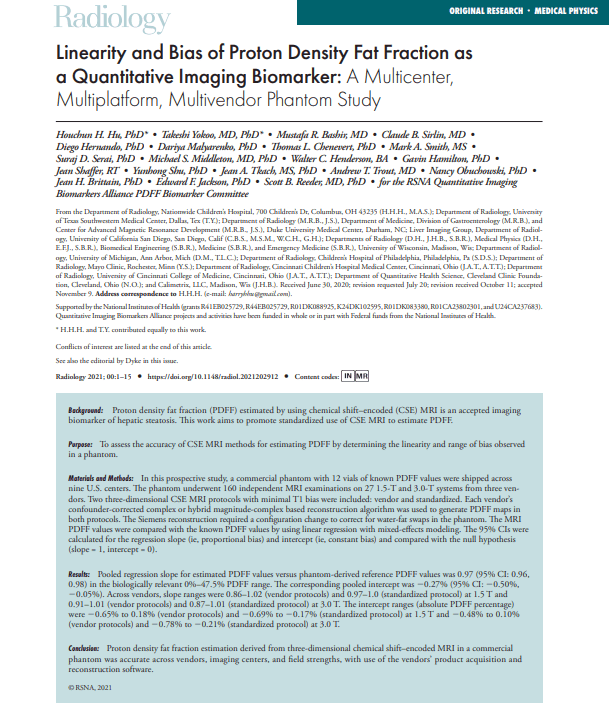

Hu H, Yokoo T, …, Hernando D,…, Brittain JH,…, Reeder SB. Linearity and Bias of Proton Density Fat Fraction as a Quantitative Imaging Biomarker: A Multicenter, Multiplatform, Multivendor Phantom Study. Radiology. Jan 19 2021. doi: 10.1148/radiol.2021202912
